5mol% MgO Doped LiNbO3 Wafers Optimal Material for High-Performance Optoelectronics
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | CQT |
| Certificação: | ISO:9001, ISO:14001 |
| Número do modelo: | Niobato de lítio (LiNbO3) |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 10 pcs |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | O pacote do frasco da gaveta, vácuo selou |
| Tempo de entrega: | 1-4 semanas |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 20000 PCs/mês |
|
Informação detalhada |
|||
| Material: | Bolacha LiNbO3 | Diâmetro fora: | 3'', 4' |
|---|---|---|---|
| Orientação: | X, Z, etc. | Doping: | 5% MgO:LN |
| Grossura: | 0.25 mm - 3 mm | Acabamento superficial: | DSP SSP |
| Rugosidade Ra: | Ra < 1 nm, Ra < 0,5 nm | Aplicação: | Filtro SAW, transdutor de ultra-som |
Descrição de produto

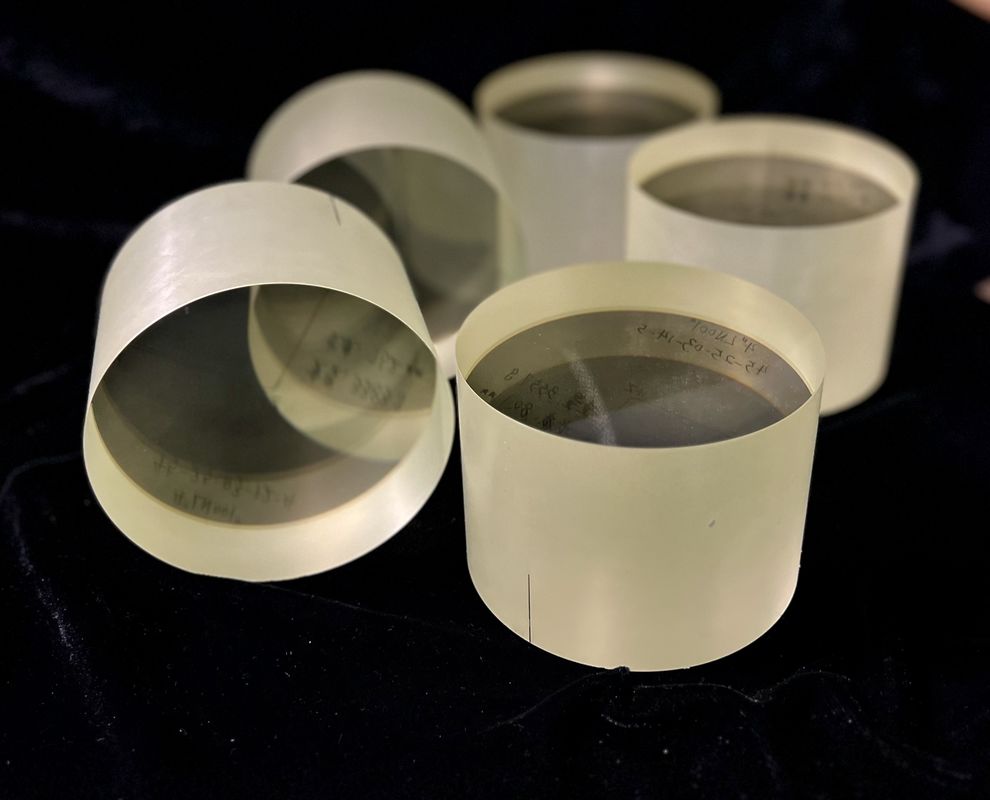

5mol% MgO Doped LiNbO3 Wafers Optimal Material for High-Performance Optoelectronics
Our 5mol% MgO-doped Lithium Niobate (LiNbO₃) wafers represent a breakthrough in nonlinear optical and electro-optic materials, engineered to deliver superior stability and efficiency for cutting-edge applications. By incorporating 5mol% magnesium oxide (MgO) doping, these wafers significantly reduce photorefractive damage, enhance optical damage thresholds, and improve thermal stability compared to undoped LiNbO₃, making them ideal for high-power laser systems, frequency converters, and integrated photonics.
Precision-manufactured using the Czochralski method, each wafer features exceptional crystallographic quality with uniform MgO distribution, ensuring consistent performance across batches. Available in standard diameters (2" to 4") and thicknesses (0.5mm to 1mm), with customizable orientations (X-cut, Y-cut, Z-cut), these wafers meet stringent requirements for surface flatness (<λ/10), low roughness (<0.5nm RMS), and high optical transparency (>99.5% T).
Perfect for acousto-optic devices, SAW filters, and quantum optics research, our wafers are backed by rigorous quality testing and ISO-certified processes. Elevate your optoelectronic innovations with 5mol% MgO-doped LiNbO₃ wafers—where enhanced durability meets unmatched precision.
|
Material |
3" 4" 6" 8" LN wafer (Saw/Optical grade) |
|
Orientation Cut |
Y64°, Y128°, YZ or Customized |
|
Surface finish |
single or double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Curie Temp |
1142°C±3°C |
|
Edge Rouding |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Cracks, saw marks, stains |
None |
|
Single Domain |
Completed Polarization/Reduced |
FAQs:
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
